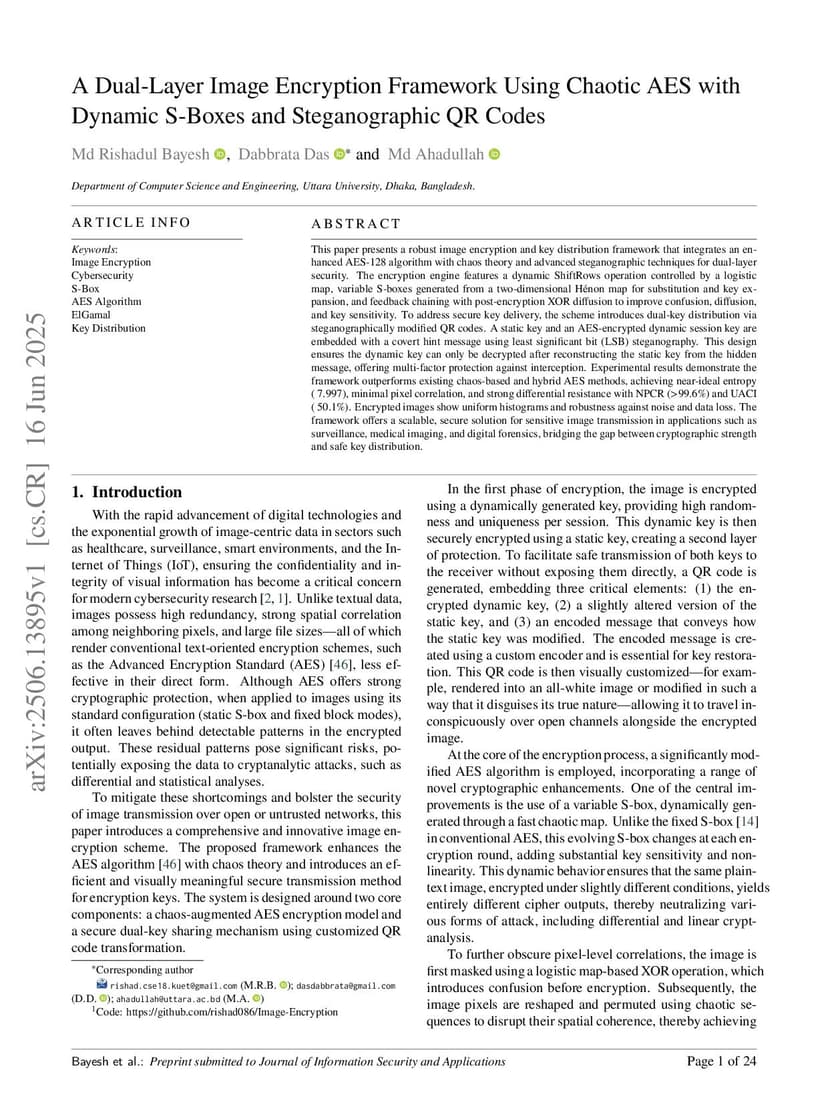

A Dual-Layer Image Encryption Framework Using Chaotic AES with Dynamic S-Boxes and Steganographic QR Codes

This paper presents a robust image encryption and key distribution framework that integrates an enhanced AES-128 algorithm with chaos theory and advanced steganographic techniques for dual-layer security. The encryption engine features a dynamic ShiftRows operation controlled by a logistic map, variable S-boxes generated from a two-dimensional Henon map for substitution and key expansion, and feedback chaining with post-encryption XOR diffusion to improve confusion, diffusion, and key sensitivity. To address secure key delivery, the scheme introduces dual-key distribution via steganographically modified QR codes. A static key and an AES-encrypted dynamic session key are embedded with a covert hint message using least significant bit (LSB) steganography. This design ensures the dynamic key can only be decrypted after reconstructing the static key from the hidden message, offering multi-factor protection against interception. Experimental results demonstrate the framework outperforms existing chaos-based and hybrid AES methods, achieving near-ideal entropy (7.997), minimal pixel correlation, and strong differential resistance with NPCR (>99.6%) and UACI (50.1%). Encrypted images show uniform histograms and robustness against noise and data loss. The framework offers a scalable, secure solution for sensitive image transmission in applications such as surveillance, medical imaging, and digital forensics, bridging the gap between cryptographic strength and safe key distribution.

@article{bayesh2025_2506.13895,
  title={ A Dual-Layer Image Encryption Framework Using Chaotic AES with Dynamic S-Boxes and Steganographic QR Codes },
  author={ Md Rishadul Bayesh and Dabbrata Das and Md Ahadullah },
  journal={arXiv preprint arXiv:2506.13895},
  year={ 2025 }
}
