An Open-Source Python Framework and Synthetic ECG Image Datasets for Digitization, Lead and Lead Name Detection, and Overlapping Signal Segmentation
- MedIm

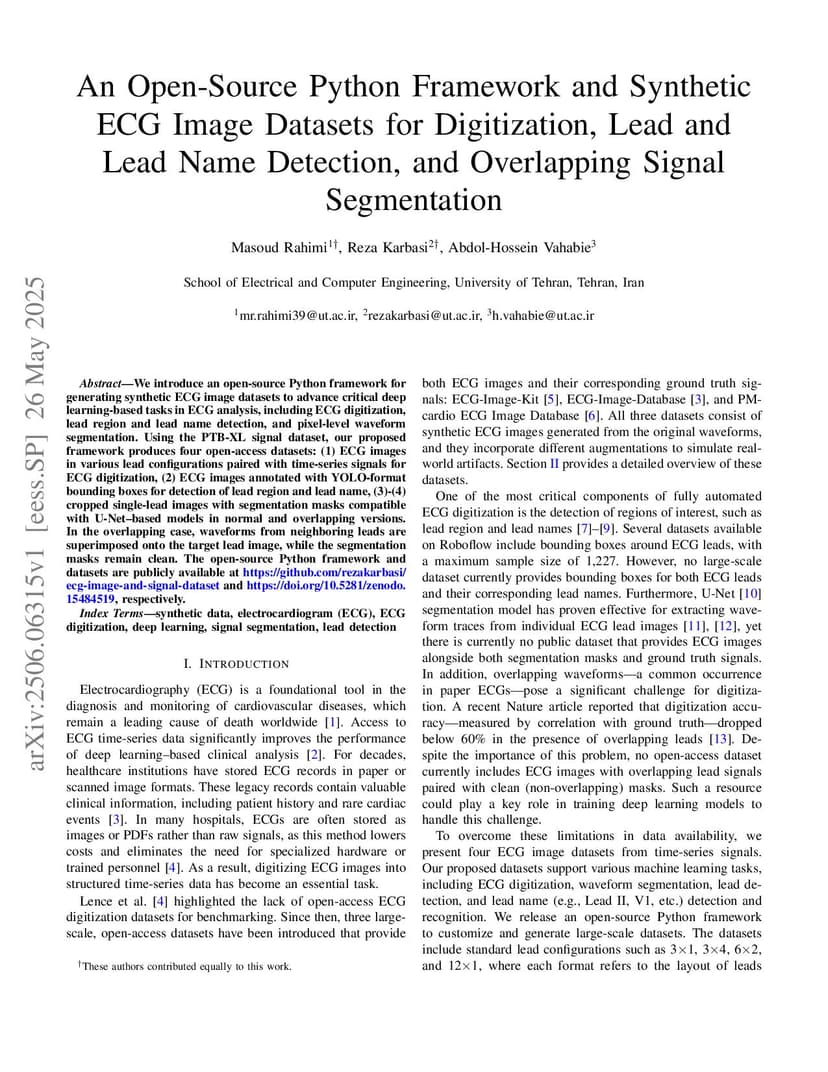

We introduce an open-source Python framework for generating synthetic ECG image datasets to advance critical deep learning-based tasks in ECG analysis, including ECG digitization, lead region and lead name detection, and pixel-level waveform segmentation. Using the PTB-XL signal dataset, our proposed framework produces four open-access datasets: (1) ECG images in various lead configurations paired with time-series signals for ECG digitization, (2) ECG images annotated with YOLO-format bounding boxes for detection of lead region and lead name, (3)-(4) cropped single-lead images with segmentation masks compatible with U-Net-based models in normal and overlapping versions. In the overlapping case, waveforms from neighboring leads are superimposed onto the target lead image, while the segmentation masks remain clean. The open-source Python framework and datasets are publicly available atthis https URLandthis https URL, respectively.
