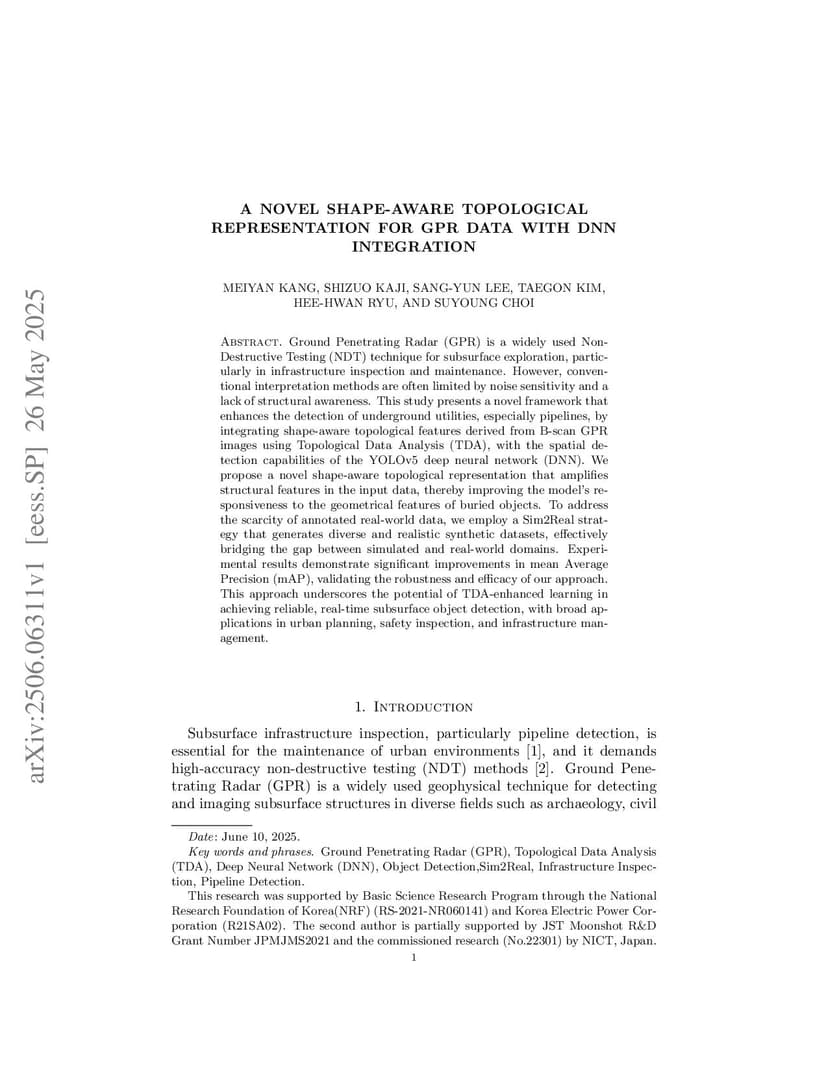

Ground Penetrating Radar (GPR) is a widely used Non-Destructive Testing (NDT) technique for subsurface exploration, particularly in infrastructure inspection and maintenance. However, conventional interpretation methods are often limited by noise sensitivity and a lack of structural awareness. This study presents a novel framework that enhances the detection of underground utilities, especially pipelines, by integrating shape-aware topological features derived from B-scan GPR images using Topological Data Analysis (TDA), with the spatial detection capabilities of the YOLOv5 deep neural network (DNN). We propose a novel shape-aware topological representation that amplifies structural features in the input data, thereby improving the model's responsiveness to the geometrical features of buried objects. To address the scarcity of annotated real-world data, we employ a Sim2Real strategy that generates diverse and realistic synthetic datasets, effectively bridging the gap between simulated and real-world domains. Experimental results demonstrate significant improvements in mean Average Precision (mAP), validating the robustness and efficacy of our approach. This approach underscores the potential of TDA-enhanced learning in achieving reliable, real-time subsurface object detection, with broad applications in urban planning, safety inspection, and infrastructure management.
