Heterogeneous multi-robot systems show great potential in complex tasks requiring hybrid cooperation. However, traditional approaches relying on static models often struggle with task diversity and dynamic environments. This highlights the need for generalizable intelligence that can bridge high-level reasoning with low-level execution across heterogeneous agents. To address this, we propose a hierarchical framework integrating a prompted Large Language Model (LLM) and a GridMask-enhanced fine-tuned Vision Language Model (VLM). The LLM decomposes tasks and constructs a global semantic map, while the VLM extracts task-specified semantic labels and 2D spatial information from aerial images to support local planning. Within this framework, the aerial robot follows an optimized global semantic path and continuously provides bird-view images, guiding the ground robot's local semantic navigation and manipulation, including target-absent scenarios where implicit alignment is maintained. Experiments on real-world cube or object arrangement tasks demonstrate the framework's adaptability and robustness in dynamic environments. To the best of our knowledge, this is the first demonstration of an aerial-ground heterogeneous system integrating VLM-based perception with LLM-driven task reasoning and motion planning.

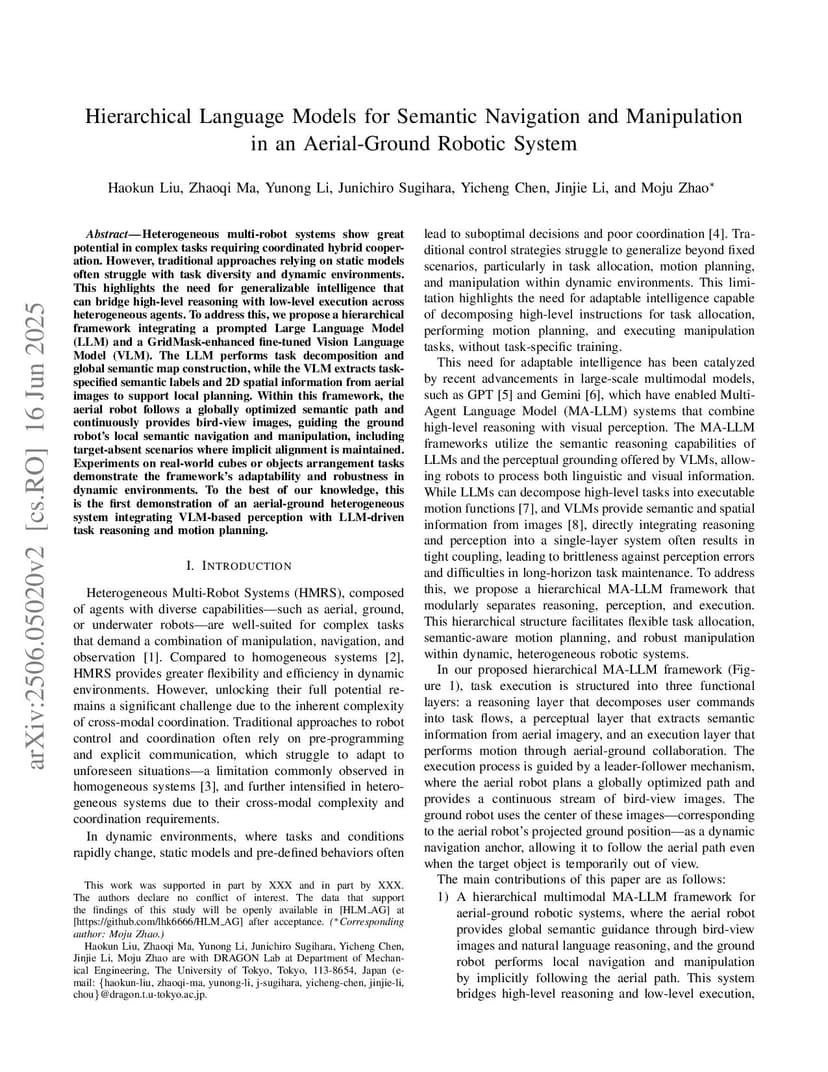

View on arXiv@article{liu2025_2506.05020,
title={ Hierarchical Language Models for Semantic Navigation and Manipulation in an Aerial-Ground Robotic System },
author={ Haokun Liu and Zhaoqi Ma and Yunong Li and Junichiro Sugihara and Yicheng Chen and Jinjie Li and Moju Zhao },
journal={arXiv preprint arXiv:2506.05020},
year={ 2025 }
}
