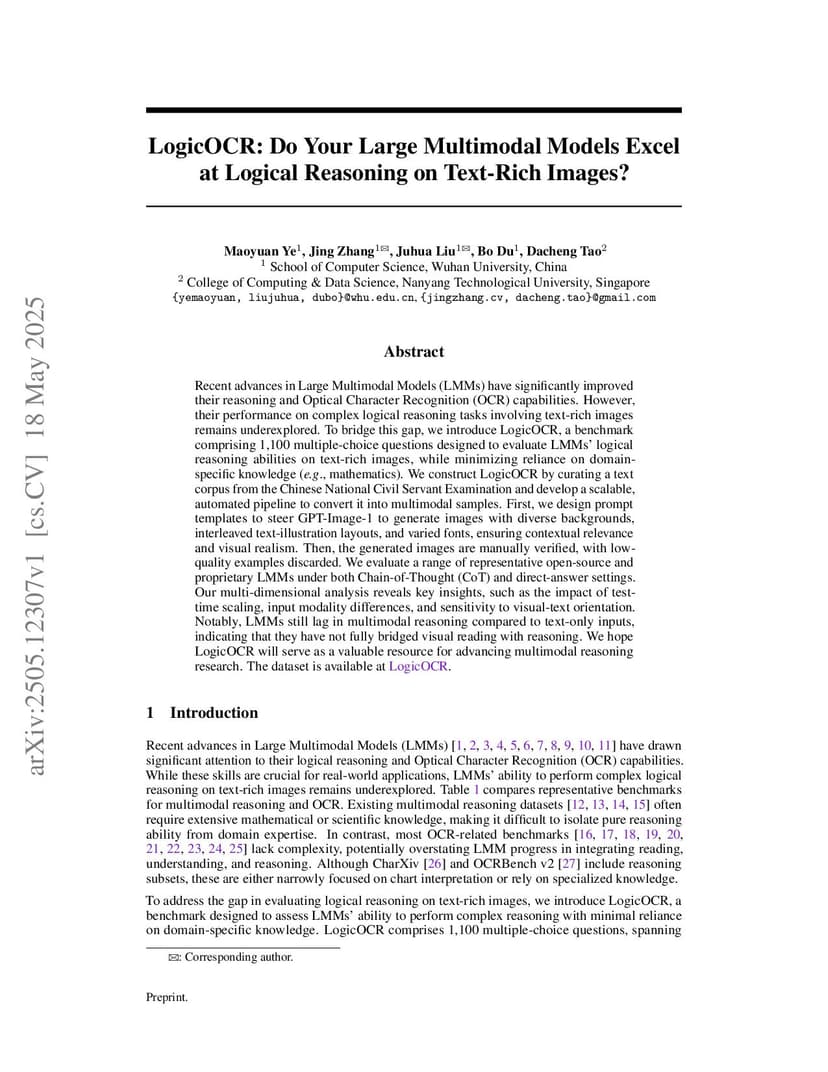

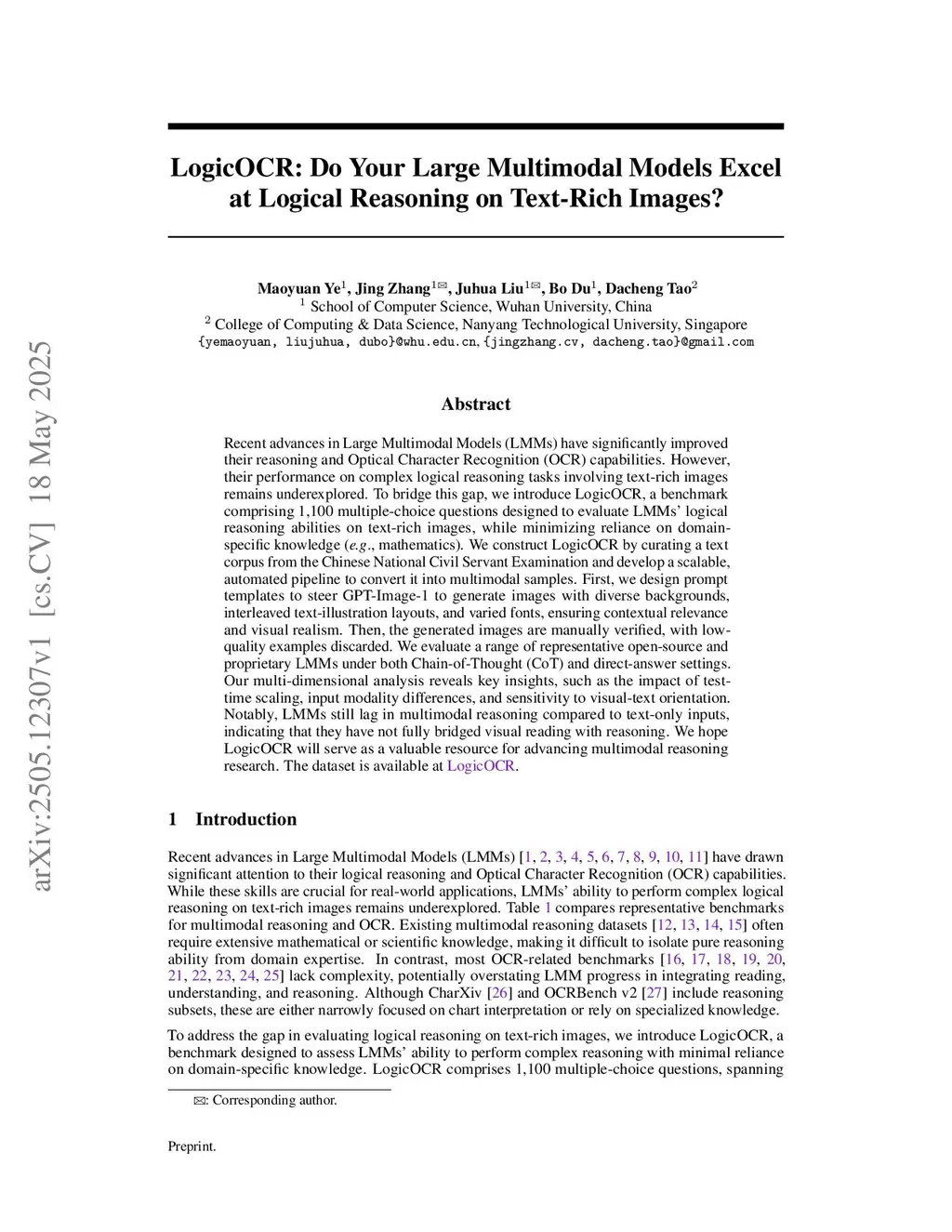

LogicOCR: Do Your Large Multimodal Models Excel at Logical Reasoning on Text-Rich Images?

Recent advances in Large Multimodal Models (LMMs) have significantly improved their reasoning and Optical Character Recognition (OCR) capabilities. However, their performance on complex logical reasoning tasks involving text-rich images remains underexplored. To bridge this gap, we introduce LogicOCR, a benchmark comprising 1,100 multiple-choice questions designed to evaluate LMMs' logical reasoning abilities on text-rich images, while minimizing reliance on domain-specific knowledge (e.g., mathematics). We construct LogicOCR by curating a text corpus from the Chinese National Civil Servant Examination and develop a scalable, automated pipeline to convert it into multimodal samples. First, we design prompt templates to steer GPT-Image-1 to generate images with diverse backgrounds, interleaved text-illustration layouts, and varied fonts, ensuring contextual relevance and visual realism. Then, the generated images are manually verified, with low-quality examples discarded. We evaluate a range of representative open-source and proprietary LMMs under both Chain-of-Thought (CoT) and direct-answer settings. Our multi-dimensional analysis reveals key insights, such as the impact of test-time scaling, input modality differences, and sensitivity to visual-text orientation. Notably, LMMs still lag in multimodal reasoning compared to text-only inputs, indicating that they have not fully bridged visual reading with reasoning. We hope LogicOCR will serve as a valuable resource for advancing multimodal reasoning research. The dataset is available atthis https URL.

@article{ye2025_2505.12307,
  title={ LogicOCR: Do Your Large Multimodal Models Excel at Logical Reasoning on Text-Rich Images? },
  author={ Maoyuan Ye and Jing Zhang and Juhua Liu and Bo Du and Dacheng Tao },
  journal={arXiv preprint arXiv:2505.12307},
  year={ 2025 }
}
