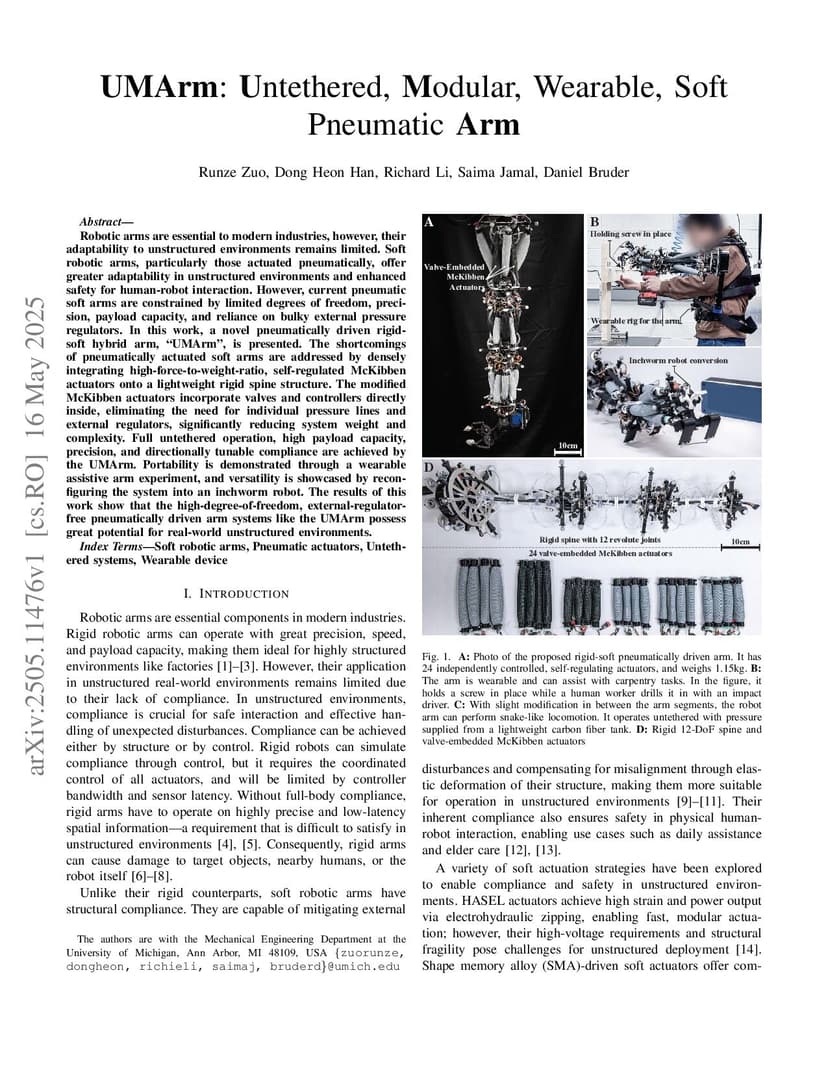

UMArm: Untethered, Modular, Wearable, Soft Pneumatic Arm

16 May 2025
Runze Zuo
Dong Heon Han
Richard Li
Saima Jamal
Daniel Bruder
ArXivPDFHTML
Abstract

Robotic arms are essential to modern industries, however, their adaptability to unstructured environments remains limited. Soft robotic arms, particularly those actuated pneumatically, offer greater adaptability in unstructured environments and enhanced safety for human-robot interaction. However, current pneumatic soft arms are constrained by limited degrees of freedom, precision, payload capacity, and reliance on bulky external pressure regulators. In this work, a novel pneumatically driven rigid-soft hybrid arm, ``UMArm'', is presented. The shortcomings of pneumatically actuated soft arms are addressed by densely integrating high-force-to-weight-ratio, self-regulated McKibben actuators onto a lightweight rigid spine structure. The modified McKibben actuators incorporate valves and controllers directly inside, eliminating the need for individual pressure lines and external regulators, significantly reducing system weight and complexity. Full untethered operation, high payload capacity, precision, and directionally tunable compliance are achieved by the UMArm. Portability is demonstrated through a wearable assistive arm experiment, and versatility is showcased by reconfiguring the system into an inchworm robot. The results of this work show that the high-degree-of-freedom, external-regulator-free pneumatically driven arm systems like the UMArm possess great potential for real-world unstructured environments.

View on arXiv
@article{zuo2025_2505.11476,
  title={ UMArm: Untethered, Modular, Wearable, Soft Pneumatic Arm },
  author={ Runze Zuo and Dong Heon Han and Richard Li and Saima Jamal and Daniel Bruder },
  journal={arXiv preprint arXiv:2505.11476},
  year={ 2025 }
}
