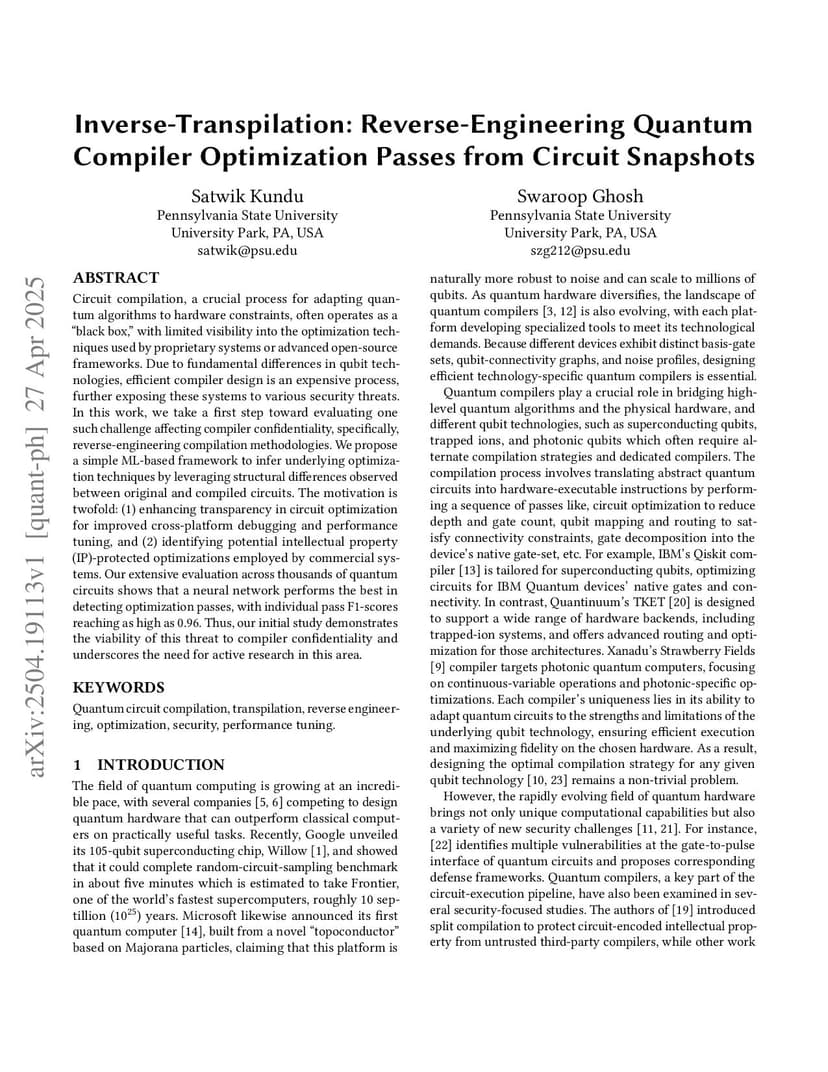

Inverse-Transpilation: Reverse-Engineering Quantum Compiler Optimization Passes from Circuit Snapshots

Circuit compilation, a crucial process for adapting quantum algorithms to hardware constraints, often operates as a ``black box,'' with limited visibility into the optimization techniques used by proprietary systems or advanced open-source frameworks. Due to fundamental differences in qubit technologies, efficient compiler design is an expensive process, further exposing these systems to various security threats. In this work, we take a first step toward evaluating one such challenge affecting compiler confidentiality, specifically, reverse-engineering compilation methodologies. We propose a simple ML-based framework to infer underlying optimization techniques by leveraging structural differences observed between original and compiled circuits. The motivation is twofold: (1) enhancing transparency in circuit optimization for improved cross-platform debugging and performance tuning, and (2) identifying potential intellectual property (IP)-protected optimizations employed by commercial systems. Our extensive evaluation across thousands of quantum circuits shows that a neural network performs the best in detecting optimization passes, with individual pass F1-scores reaching as high as 0.96. Thus, our initial study demonstrates the viability of this threat to compiler confidentiality and underscores the need for active research in this area.

@article{kundu2025_2504.19113,
  title={ Inverse-Transpilation: Reverse-Engineering Quantum Compiler Optimization Passes from Circuit Snapshots },
  author={ Satwik Kundu and Swaroop Ghosh },
  journal={arXiv preprint arXiv:2504.19113},
  year={ 2025 }
}
