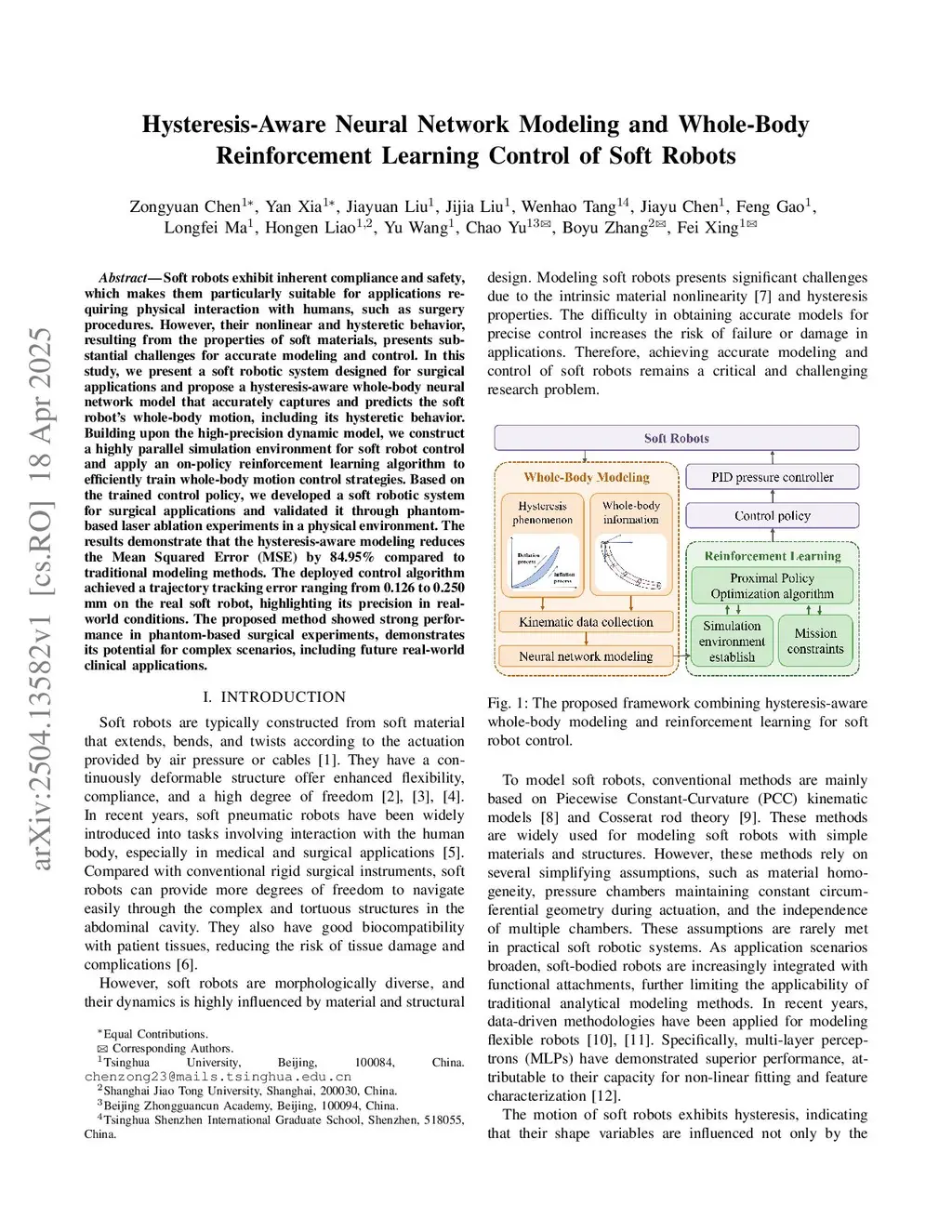

Hysteresis-Aware Neural Network Modeling and Whole-Body Reinforcement Learning Control of Soft Robots

Soft robots exhibit inherent compliance and safety, which makes them particularly suitable for applications requiring direct physical interaction with humans, such as surgical procedures. However, their nonlinear and hysteretic behavior, resulting from the properties of soft materials, presents substantial challenges for accurate modeling and control. In this study, we present a soft robotic system designed for surgical applications and propose a hysteresis-aware whole-body neural network model that accurately captures and predicts the soft robot's whole-body motion, including its hysteretic behavior. Building upon the high-precision dynamic model, we construct a highly parallel simulation environment for soft robot control and apply an on-policy reinforcement learning algorithm to efficiently train whole-body motion control strategies. Based on the trained control policy, we developed a soft robotic system for surgical applications and validated it through phantom-based laser ablation experiments in a physical environment. The results demonstrate that the hysteresis-aware modeling reduces the Mean Squared Error (MSE) by 84.95 percent compared to traditional modeling methods. The deployed control algorithm achieved a trajectory tracking error ranging from 0.126 to 0.250 mm on the real soft robot, highlighting its precision in real-world conditions. The proposed method showed strong performance in phantom-based surgical experiments and demonstrates its potential for complex scenarios, including future real-world clinical applications.

@article{chen2025_2504.13582,
  title={ Hysteresis-Aware Neural Network Modeling and Whole-Body Reinforcement Learning Control of Soft Robots },
  author={ Zongyuan Chen and Yan Xia and Jiayuan Liu and Jijia Liu and Wenhao Tang and Jiayu Chen and Feng Gao and Longfei Ma and Hongen Liao and Yu Wang and Chao Yu and Boyu Zhang and Fei Xing },
  journal={arXiv preprint arXiv:2504.13582},
  year={ 2025 }
}
