Traditional range-instantaneous Doppler (RID) methods for rigid-body target imaging often suffer from low resolution due to the limitations of time-frequency analysis (TFA). To address this challenge, our primary focus is on obtaining high resolution time-frequency representations (TFRs) from their low resolution counterparts. Recognizing that the curve features of TFRs are a specific type of texture feature, we argue that pre trained generative models such as Stable Diffusion (SD) are well suited for enhancing TFRs, thanks to their powerful capability in capturing texture representations. Building on this insight, we propose a novel inverse synthetic aperture radar (ISAR) imaging method for rigid-body targets, leveraging the low-rank adaptation (LoRA) of a pre-trained SD model. Our approach adopts the basic structure and pre-trained parameters of SD Turbo while incorporating additional linear operations for LoRA and adversarial training to achieve super-resolution and noise suppression. Then we integrate LoRA-SD into the RID-based ISAR imaging, enabling sharply focused and denoised imaging with super-resolution capabilities. We evaluate our method using both simulated and real radar data. The experimental results demonstrate the superiority of our approach in frequency es timation and ISAR imaging compared to traditional methods. Notably, the generalization capability is verified by training on simulated radar data and testing on measured radar data.

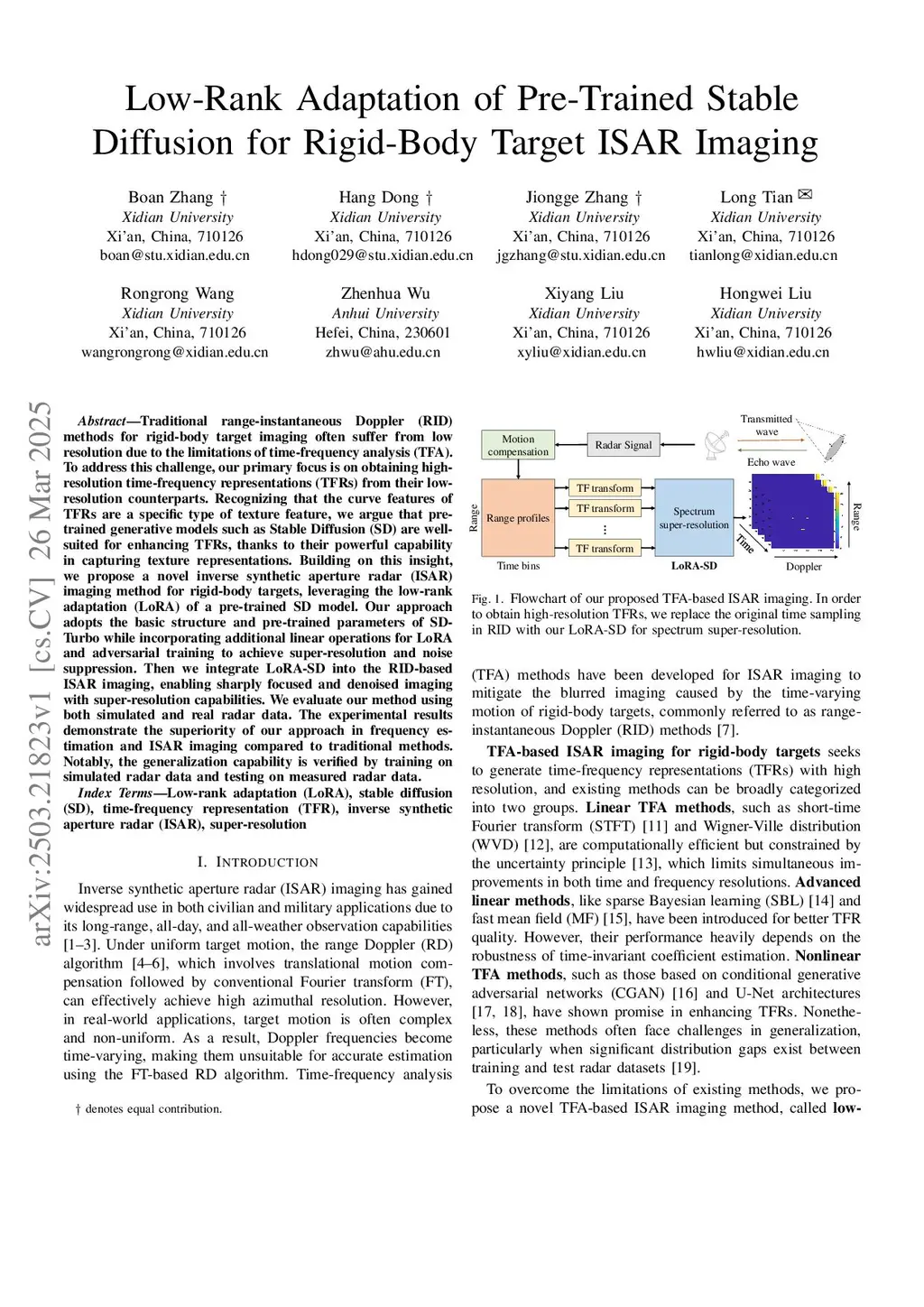

View on arXiv@article{zhang2025_2503.21823,
title={ Low-Rank Adaptation of Pre-Trained Stable Diffusion for Rigid-Body Target ISAR Imaging },
author={ Boan Zhang and Hang Dong and Jiongge Zhang and Long Tian and Rongrong Wang and Zhenhua Wu and Xiyang Liu and Hongwei Liu },
journal={arXiv preprint arXiv:2503.21823},
year={ 2025 }
}
