Controlling and monitoring plasma within a tokamak device is complex and challenging. Plasma off-normal events, such as disruptions, are hindering steady-state operation. For large devices, they can even endanger the machine's integrity and it represents in general one of the most serious concerns for the exploitation of the tokamak concept for future power plants. Effective plasma state monitoring carries the potential to enable an understanding of such phenomena and their evolution which is crucial for the successful operation of tokamaks. This paper presents the application of a transparent and data-driven methodology to monitor the plasma state in a tokamak. Compared to previous studies in the field, supervised and unsupervised learning techniques are combined. The dataset consisted of 520 expert-validated discharges from JET. The goal was to provide an interpretable plasma state representation for the JET operational space by leveraging multi-task learning for the first time in the context of plasma state monitoring. When evaluated as disruption predictors, a sequence-based approach showed significant improvements compared to the state-based models. The best resulting network achieved a promising cross-validated success rate when combined with a physical indicator and accounting for nearby instabilities. Qualitative evaluations of the learned latent space uncovered operational and disruptive regions as well as patterns related to learned dynamics and global feature importance. The applied methodology provides novel possibilities for the definition of triggers to switch between different control scenarios, data analysis, and learning as well as exploring latent dynamics for plasma state monitoring. It also showed promising quantitative and qualitative results with warning times suitable for avoidance purposes and distributions that are consistent with known physical mechanisms.
View on arXiv@article{bürli2025_2502.12182,

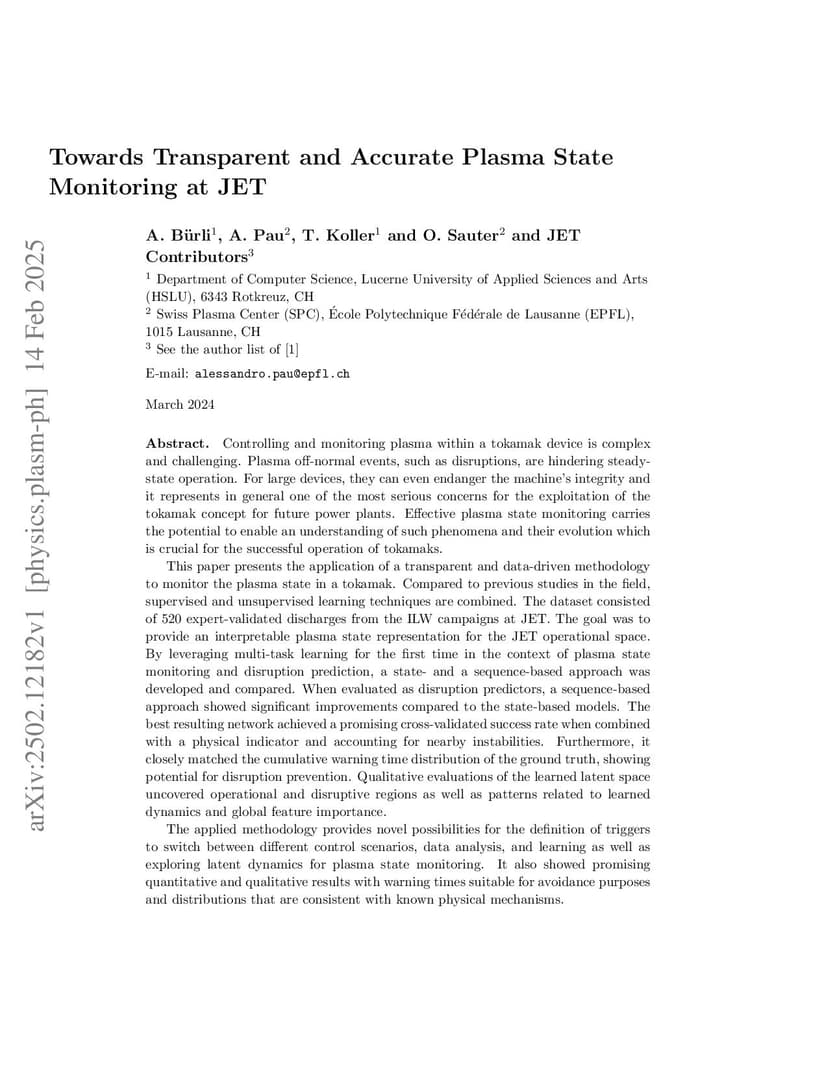

title={ Towards Transparent and Accurate Plasma State Monitoring at JET },
author={ Andrin Bürli and Alessandro Pau and Thomas Koller and Olivier Sauter and JET Contributors },
journal={arXiv preprint arXiv:2502.12182},
year={ 2025 }
}
