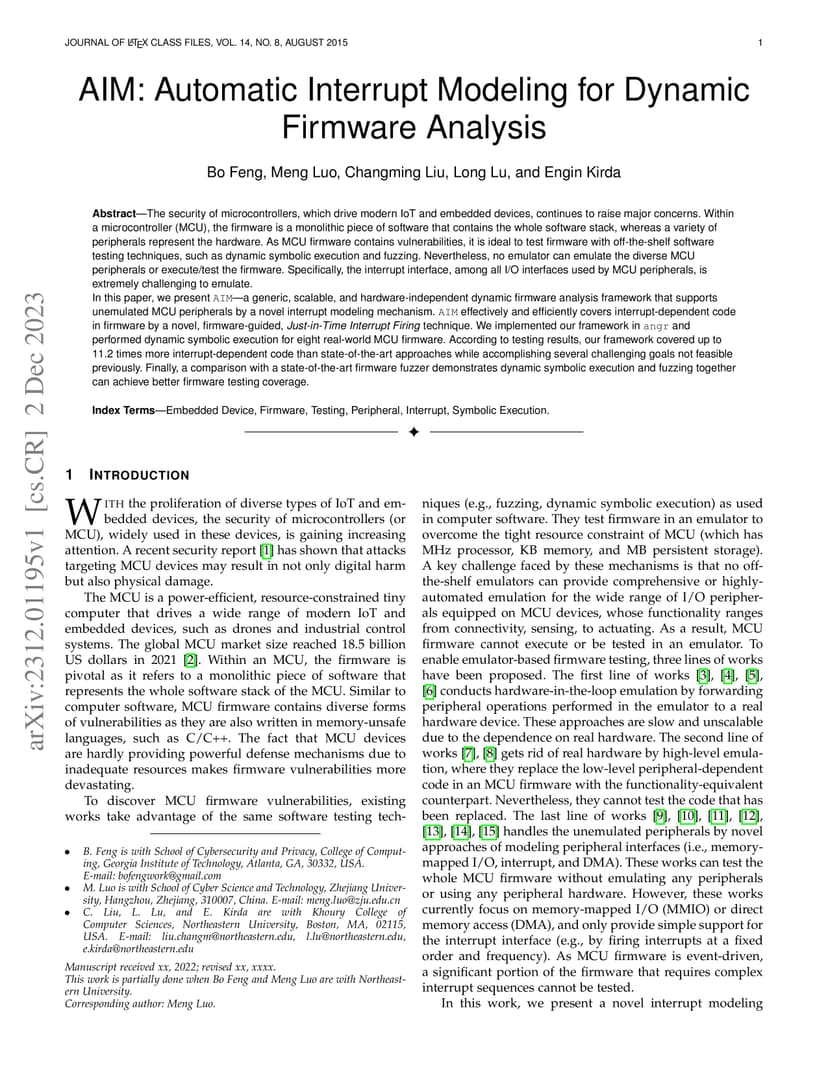

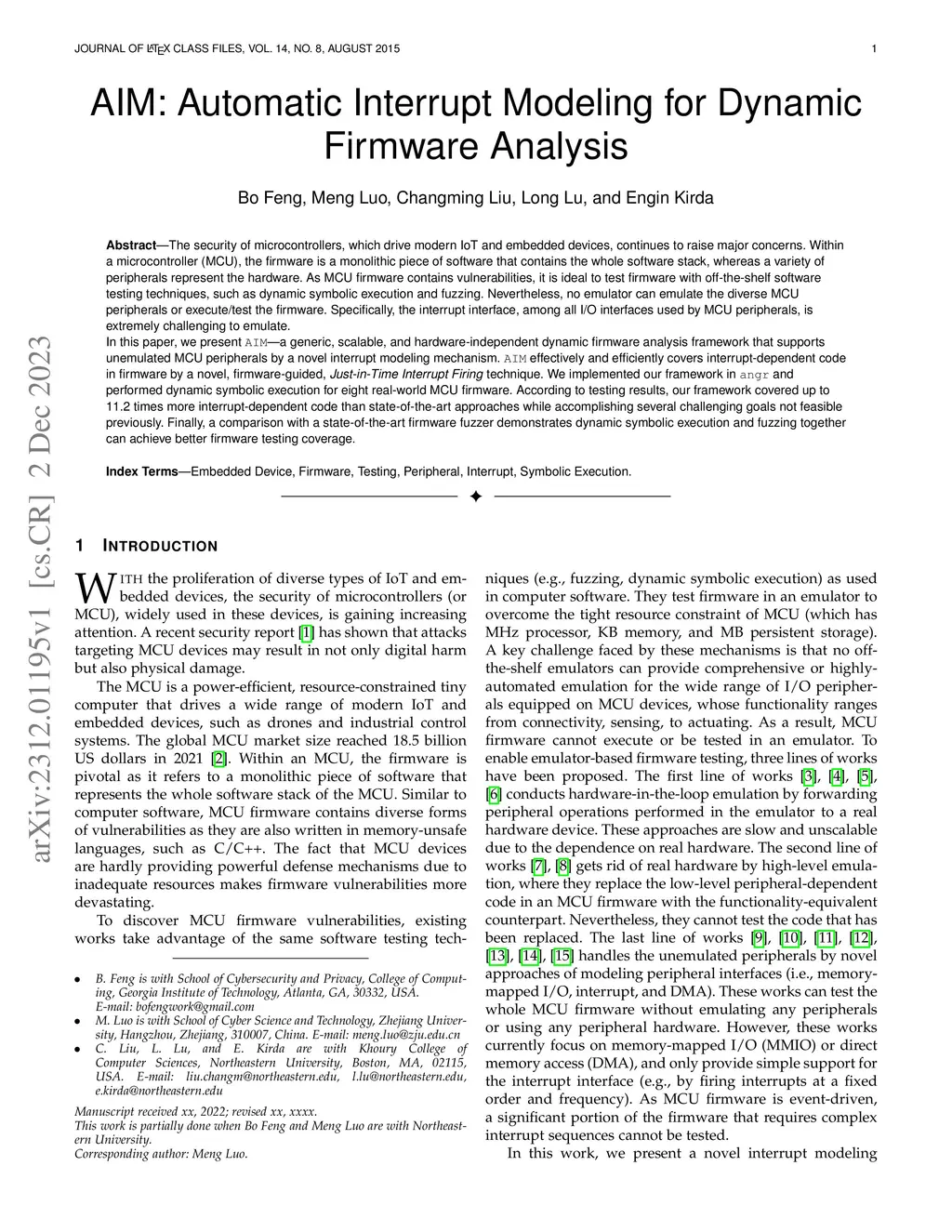

The security of microcontrollers, which drive modern IoT and embedded devices, continues to raise major concerns. Within a microcontroller (MCU), the firmware is a monolithic piece of software that contains the whole software stack, whereas a variety of peripherals represent the hardware. As MCU firmware contains vulnerabilities, it is ideal to test firmware with off-the-shelf software testing techniques, such as dynamic symbolic execution and fuzzing. Nevertheless, no emulator can emulate the diverse MCU peripherals or execute/test the firmware. Specifically, the interrupt interface, among all I/O interfaces used by MCU peripherals, is extremely challenging to emulate. In this paper, we present AIM -- a generic, scalable, and hardware-independent dynamic firmware analysis framework that supports unemulated MCU peripherals by a novel interrupt modeling mechanism. AIM effectively and efficiently covers interrupt-dependent code in firmware by a novel, firmware-guided, Just-in-Time Interrupt Firing technique. We implemented our framework in angr and performed dynamic symbolic execution for eight real-world MCU firmware. According to testing results, our framework covered up to 11.2 times more interrupt-dependent code than state-of-the-art approaches while accomplishing several challenging goals not feasible previously. Finally, a comparison with a state-of-the-art firmware fuzzer demonstrates dynamic symbolic execution and fuzzing together can achieve better firmware testing coverage.
