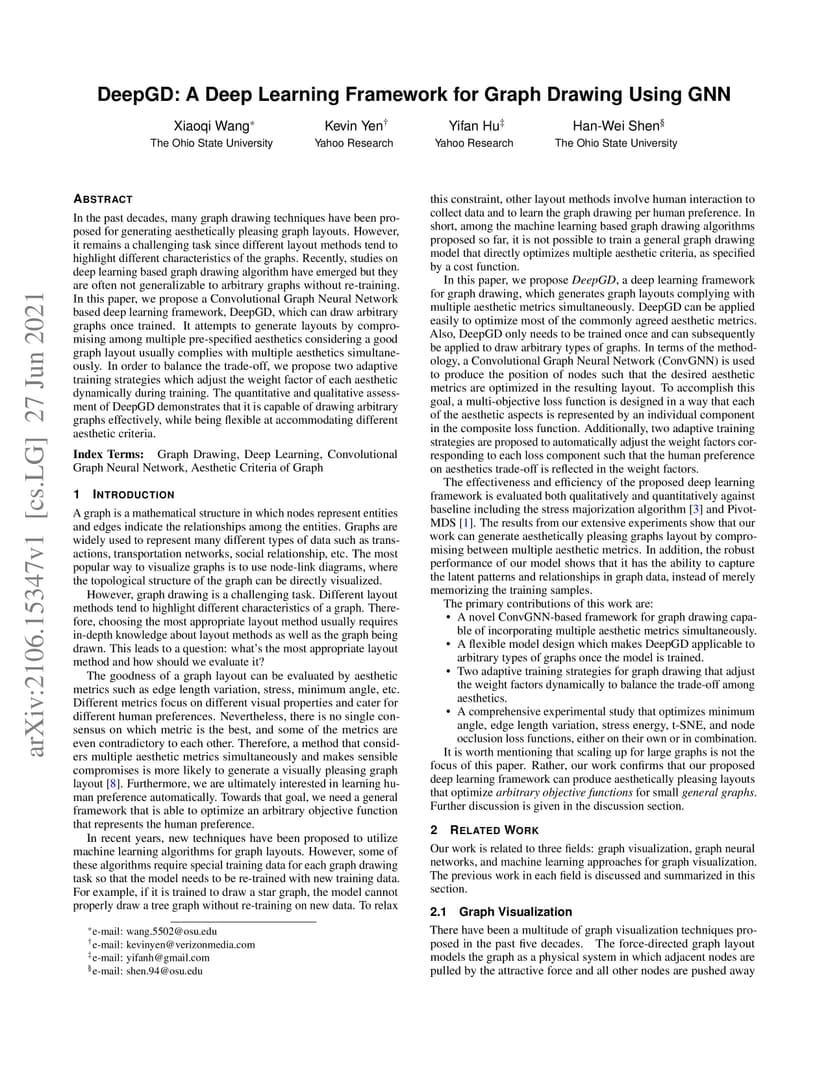

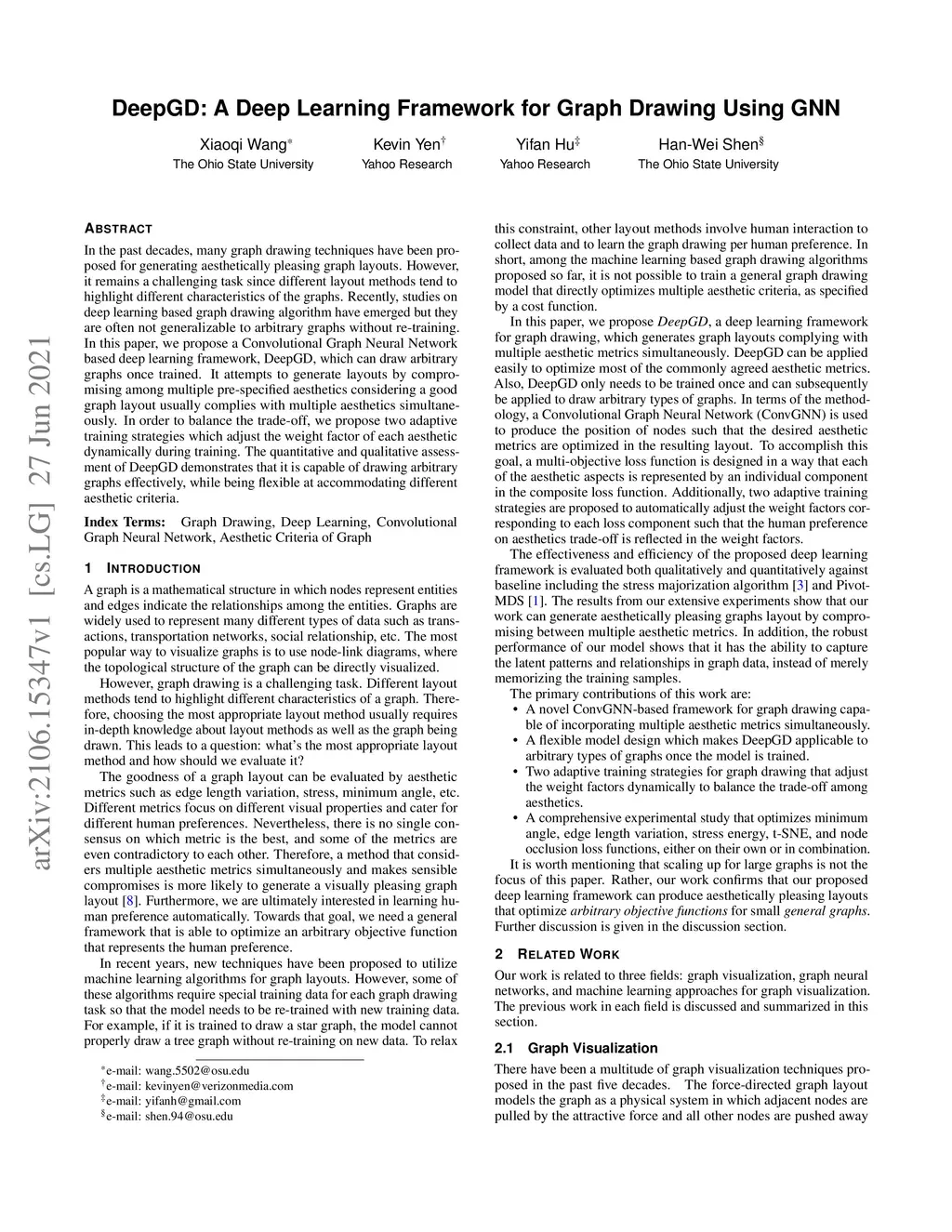

DeepGD: A Deep Learning Framework for Graph Drawing Using GNN

27 June 2021
Xiaoqi Wang
Kevin Yen
Yifan Hu
Han-Wei Shen
    GNN
ArXivPDFHTML
Abstract

In the past decades, many graph drawing techniques have been proposed for generating aesthetically pleasing graph layouts. However, it remains a challenging task since different layout methods tend to highlight different characteristics of the graphs. Recently, studies on deep learning based graph drawing algorithm have emerged but they are often not generalizable to arbitrary graphs without re-training. In this paper, we propose a Convolutional Graph Neural Network based deep learning framework, DeepGD, which can draw arbitrary graphs once trained. It attempts to generate layouts by compromising among multiple pre-specified aesthetics considering a good graph layout usually complies with multiple aesthetics simultaneously. In order to balance the trade-off, we propose two adaptive training strategies which adjust the weight factor of each aesthetic dynamically during training. The quantitative and qualitative assessment of DeepGD demonstrates that it is capable of drawing arbitrary graphs effectively, while being flexible at accommodating different aesthetic criteria.

View on arXiv
