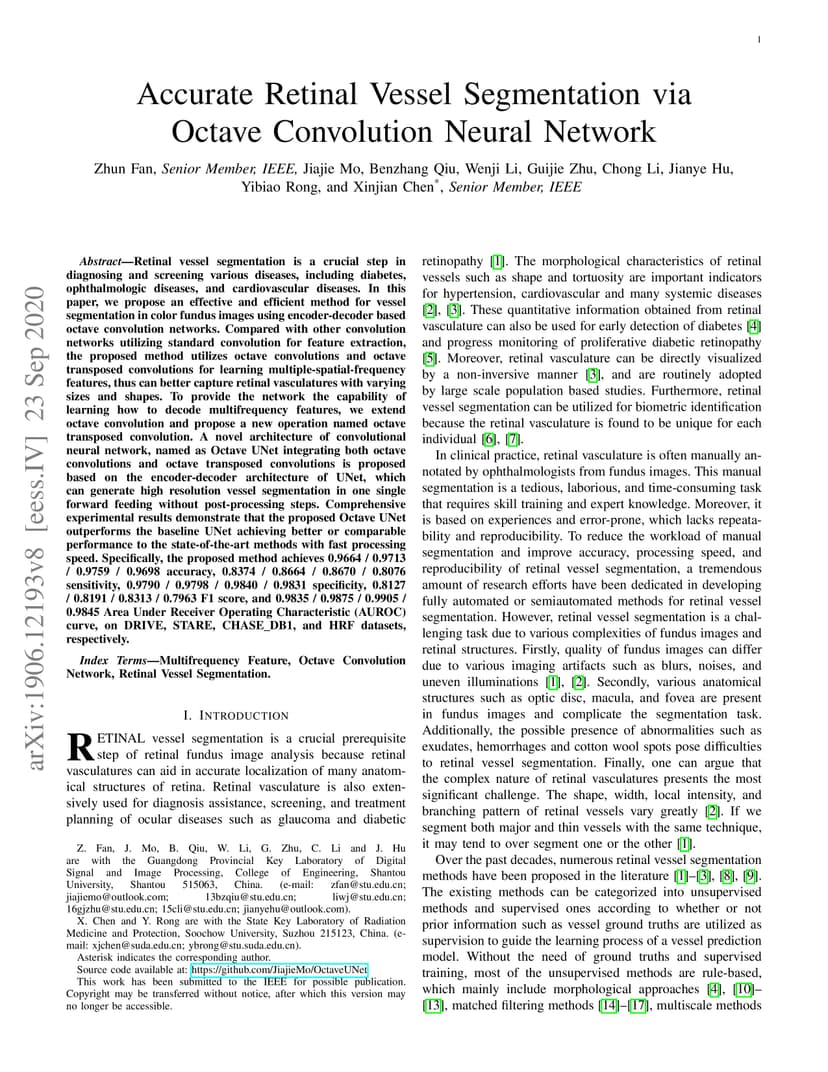

Retinal vessel segmentation is a crucial step in diagnosing and screening various diseases, including diabetes, ophthalmologic diseases, and cardiovascular diseases. In this paper, we propose an effective and efficient method for vessel segmentation in color fundus images using encoder-decoder based octave convolution networks. Compared with other convolution networks utilizing standard convolution for feature extraction, the proposed method utilizes octave convolutions and octave transposed convolutions for learning multiple-spatial-frequency features, thus can better capture retinal vasculatures with varying sizes and shapes. To provide the network the capability of learning how to decode multifrequency features, we extend octave convolution and propose a new operation named octave transposed convolution. A novel architecture of convolutional neural network, named as Octave UNet integrating both octave convolutions and octave transposed convolutions is proposed based on the encoder-decoder architecture of UNet, which can generate high resolution vessel segmentation in one single forward feeding without post-processing steps. Comprehensive experimental results demonstrate that the proposed Octave UNet outperforms the baseline UNet achieving better or comparable performance to the state-of-the-art methods with fast processing speed. Specifically, the proposed method achieves 0.9664 / 0.9713 / 0.9759 / 0.9698 accuracy, 0.8374 / 0.8664 / 0.8670 / 0.8076 sensitivity, 0.9790 / 0.9798 / 0.9840 / 0.9831 specificity, 0.8127 / 0.8191 / 0.8313 / 0.7963 F1 score, and 0.9835 / 0.9875 / 0.9905 / 0.9845 Area Under Receiver Operating Characteristic curve, on DRIVE, STARE, CHASE_DB1, and HRF datasets, respectively.
View on arXiv
